Fabrications Drawings

Custom CAD (Computer Aided Drawing) Design Work

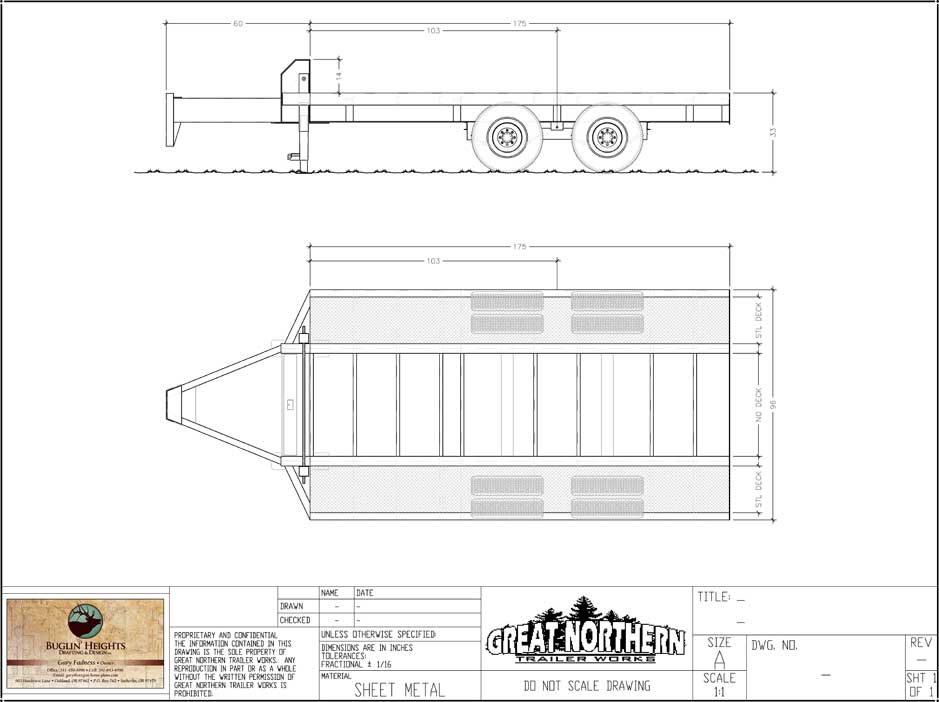

Fabrication drawing is a specific type of detail drawing. Some fabrication drawings are virtually assembly drawing e.g. when a number of items are assembled together as a fabrication. The fabrication drawing generally includes a material parts list identifying all of the materials used to build up the item. All weld details are included using the standard symbolic representation of welds. All of the materials should be identified in accordance with the relevant standards and codes.

A fabrication drawing should clearly describe in notes or in referenced documents the heat treatment and stress relieving requirements prior to, during and following the completion of the fabrication processes. The dimensions and relevant linear and geometric tolerances should be indicated.

CALL 541-643-4998 TODAY TO DISCUSS YOUR PROJECT.
